Passenger lifts

With specialist teams incorporated within the business we have developed and designed a range of products to suit your needs, our passenger lifts are one such product. Your passenger lift installation needs to take into consideration your buildings requirements as well as your own and that's the balance we try to achieve here at Relis. We assess your individual needs, the space you have plus a whole host of other factors to install the perfect passenger lift for you. Our experienced Passenger Lift Engineers will be on hand throughout any project to advise, educate and ensure the installation process goes as smoothly as possible so each and every customer is 100% satisfied with the Lift Installation they receive.
Passenger Lift Installation
With our passenger lifts we go to market with two popular ranges, offering over 25 different lift car sizes and layouts to choose from. If you require something a bit different, we also have design capabilities to provide you with a completely unique passenger lift model, \ tailor-made to your specific, individual requirements. With these options, available to all of our existing and potential customers, Relis Lifts is sure to have a solution to fulfil your elevator needs. All of our passenger lifts comply with Lifts and Escalator Regulations Act All of our passenger lifts combine functionality, reliability and aesthetics to ensure your passenger lift installation ticks all the boxes.

Our passenger lifts are suitable for a variety of different applications such as for use in schools, hospitals, hotels, office buildings and shopping centers. If you're looking for a new passenger lift or would like to hear more about our passenger lifts then take a look around our website or contact us here at Relis.

Relis Lifts provides a full range of standard & bespoke Passenger Lift designs for
  • Traction & Hydraulic Lifts
  • Panoramic Lifts
  • Fire fighting / Evacuation Lifts
  • Customised solutions on request
  • Blog
  • Portfolio

Innovative passenger lifts solutions for your project backed by the latest technology
  • Standard Pre-Engineered from 320kg to 3200kg
  • Machine Room Less (MRL) and Gearless (GRL) versions
  • Reduced pit depth capability (250mm minimum)
  • Comprehensive range of finishes available
  • All passenger lifts installations fully compliant with latest EN81 and SANS
  • All passenger lifts installations fully compliant with latest EN81 and SANS
Get Quote
Service Lifts/Dumbwaiters
Service lifts are a necessity for many busy commercial and industrial buildings, across a variety of different sectors. Here at Relis Lifts, we can supply service lifts for a range of different applications including hotels, restaurants, retail shops, offices and warehouses. We can install a selection of service lifts including Dumbwaiters, Trolley lifts and Goods lifts. Our range of service lifts include small lifts for light loads, right through to heavy duty service lifts, and as well as installation of service lifts, we also offer repair and maintenance lift services. A service lift needs to be reliable as companies depend on them to smoothly run their businesses; whether they're a pub, shop, factory or even a nursing home.' That's why so many companies are choosing Relis Lifts for their service lift installation. Quick and reliable, dumbwaiters are multi-functional and can add a great deal of convenience in your life. Whether it's transporting food and utensils in a sanitary manner, office documents in a home office, or the many miscellaneous items that come with having children in the house, having a dumbwaiter is sure to make your life easier. And not to mention, the bragging rights!

We provide a full range of Service Lifts / Dumbwaiters suitable for hotels, bars, restaurants, shops, offices and domestic locations

  • Capacity 50kg to 500kg
  • Serving at floor or counter levels
  • Self supporting structure
  • Machine above, below or side arrangement
  • 3 Phase or Single Phase drive options
  • Primed, galvanised or stainless steel finishes available
  • Two hour fire rated doors
  • Complies with latest European Standard EN81-3 and SANS.
Get Quote
Goods Lifts/Passenger lifts
It may not be possible for you to fit two elevator shafts in your building,' meaning that there is a lack of transport options for either passengers or goods. With Relis Lift services, you will not need to worry any more. We provide customers with the solution - Goods/Passenger lifts. These lifts are perfectly suited to a mixed environment and can handle both the transport of heavy goods and the movement of passengers with ease and comfort. We provide a wide range of fittings and furnishings for the lift so that it is effective and valuable for goods transport, as well as comfortable and bright for passengers. Even the lighting systems and button panels can be customized to ensure your lift stays in keeping with the feel of your building and our precision engineering ensures a smooth ride for both passengers and goods. As with all our lifts, we ensure that our Goods/Passenger lifts are compliant with the EN81-2 regulations and the Lifts Directive 1997.

Maintenance / service of the lift is also something we take very seriously and our range of services includes:
  • Full survey and quotation
  • Design consultation
  • Sourcing of bespoke parts and components
  • Expert installation and testing
  • Ongoing maintenance and lift services
  • Tailor made lift interiors
  • High quality safety compliance
  • Lighting and safety barriers
  • High load capacities
We have a wide range of goods lifts that are known for their ability to manage heavy loads. These lifts are well designed and are manufactured from high grade of raw materials that ensures durability. These goods' lifts are known for their lower energy consumption ability. Used in various industries as well as construction sites, these lifts help in transferring of goods from one level to another. Besides being conceptualized to maximize serviceability during peak hours, cleaning and maintenance for our commercial lifts and goods lifts are also planned for optimal performance, and can be done with minimal disruption. Want your lift to fit in with your building's branding? Feel free to customize its interior details. We'll be there to plan the capacity and design of your lift with you

Traction and Hydraulic design solutions
  • Self supporting structure or masonry shaft
  • Capacity from 500kg upwards
  • Automatic doors or manual shutter or sliding door options available
  • Wide range of robust car finishes
  • Standard and bespoke range of car and door dimensions
  • Explosion proof EX Options
  • All installations fully compliant with latest EN81-1/2 and SANS standards
Get Quote

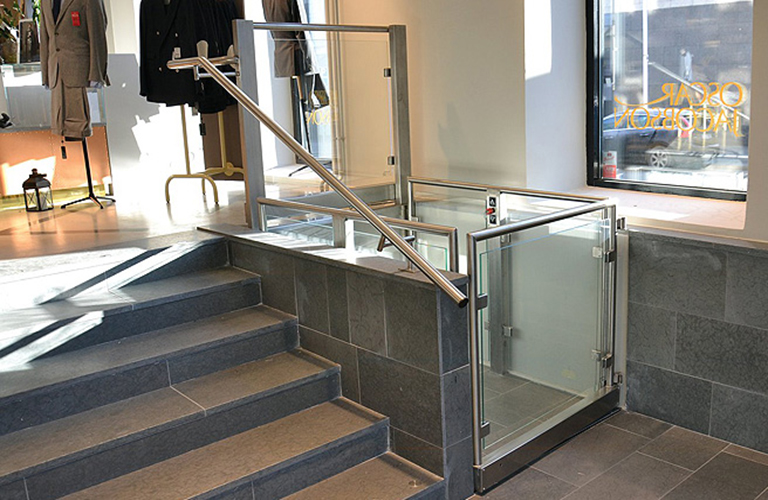

Platform Lifts
It's About Independence Relis supply a versatile range of Platform Lifts suitable for new buildings or retro fitting into existing premises. The Relis platform lifts provide accessibility without barriers. Compact and reliable, these lifts are engineered to endure the harshest weather conditions with all season illuminated controls and powder coated panels to resist corrosion. With a long list of options available like platform sizes, lifting heights, weight capacities, interlocking landing and platform gates, enclosed hoistway installations and many more, our platform lifts are available in residential and commercial lifts. These platform lifts are your best choice for independence and peace of mind. Now you can enjoy an active, mobile lifestyle regardless of physical limitations. Hydraulic elevators are suitable for homes, bungalows, hotels, hospitals, nursing homes & new or old houses. We offer wide range of hydraulic elevators or hydraulic lifts that are uniquely designed to offer high performance. Our hydraulic elevators are compact lifters comprising of: Trolley mounted steel, Frame Hydraulic cylinders, Hand pumps Top platform and Scissors type steel brackets It also features load holding at any desired height as a safety feature, avoiding sudden accidental slide down of the platform. Our range of hydraulic elevator are extensively used for general maintenance in plants.

Design Features:
  • Self supporting structure or masonry shaft
  • Automatic telescopic side opening or side hinged landing doors with manual, self closing or powered options
  • Constant pressure push button operation to EU Machinery Directive. Elevator control available with fully enclosed cabin design
  • Single Phase or 3 Phase drives available
  • Variety of platform sizes available normally engineered to meet or exceed the requirements Building Act
  • Shallow pits from 50mm, 125mm and 200 mm dependant on individual model design
  • Available for internal and external locations

Design Benefits:
  • Minimal builders work required
  • Shallow pit and low headroom
  • Short installation time
  • Space saving compact design
  • Economical solution


Customizability:

Our lifts are always designed with your home in mind. Each home is unique, and that's why we put such great focus on a lift that integrates well with your interior design and personal style. Be it panoramic swing doors, elevating platforms, or reduced vertical safety spaces, we'll guide you on the right type of lift that combines both functionality and aesthetic appeal.

Convenience:

Think of it as future-proofing for your beloved home. Planning on having kids? A home lift will help greatly when you've a pram and a ton of grocery shopping. Want to give your elderly parents an easier time or hoping to live in the same house well into your autumn years? Get a peace of mind when you know that anyone with reduced mobility can move around the house with ease.

Luxury:

Think sophistication and comfort. A home lift will essentially be the coolest piece of furniture in your home that you'll always be proud of, one that's practical, good looking, and changes life for the better. What's more, because it'll accommodate the lifestyles of even more people, you can be sure that it'll increase your home's value to a wider range of future buyers.
Get Quote

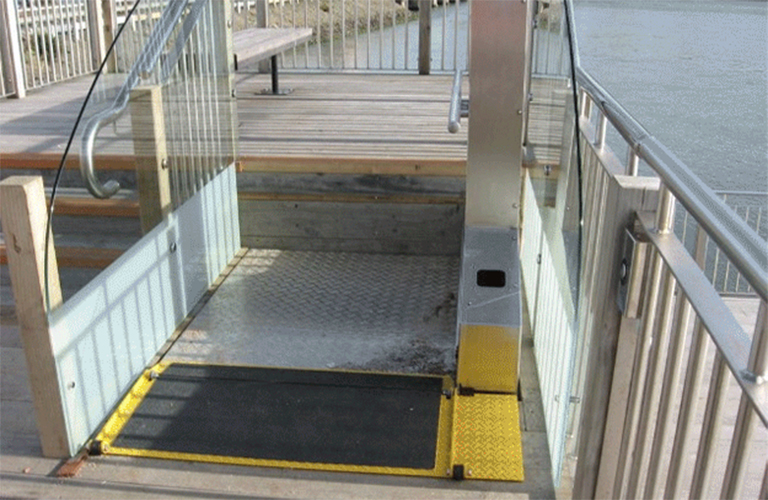

Low Rise Platform Lifts
Relis provides a range of standard and bespoke Low Rise Vertical Platform Lifts suitable for internal and external locations

Standard Units - Design Features & Benefits:
  • Variety of standard platform sizes available
  • Adjacent entry layout available
  • Travel dimensions up to 2000 mm
  • Static gate at upper level
  • Range of standard finishes available

Bespoke Units - Design Features & Benefits:
  • Wide range of platform sizes available
  • Engineered and designed to suit individual site requirements
  • Suitable for travels up to and exceeding 1600 mm ? 3 Phase power supply
  • Bespoke finishes and designs to meet individual architectural requirement
Hydraulic elevators are suitable for homes, bungalows, hotels, hospitals, nursing homes & new or old houses. We offer wide range of hydraulic elevators or hydraulic lifts that are uniquely designed to offer high performance. Our hydraulic elevators are compact lifters comprising of: Trolley mounted steel, Frame Hydraulic cylinders, Hand pumps Top platform and Scissors type steel brackets
Get Quote

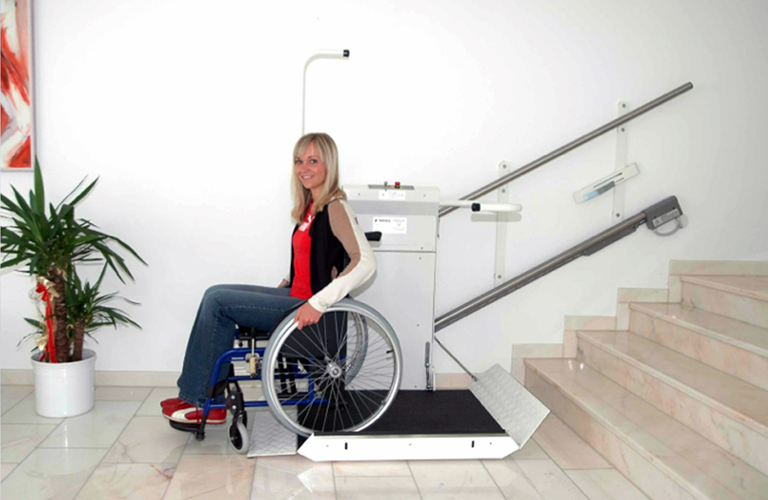

Inclined Platform Lifts, Wheelchair lifts/Stair lifts/Chairlifts
Inclined Platform Lifts Wheelchair lifts/Stair lifts/Chairlifts These are available as wheelchair lifts or stair lifts. Relis range of Inclined Platform Lifts are suitable for new buildings or retro fitting into existing premises

Design Features:
  • Straight rail, single gradient
  • Curved rail with changes in gradient and bends
  • Choice of platform size
  • Suitable for internal or external locations
  • Full range of safety features
  • Easily integrated with new or existing staircase designs
  • Single Phase power supply required
  • User-friendly features to facilitate independent use
  • Complies with EN standards and SANS
Design Benefits:
  • Minimal builders work required
  • Quick installation with minimal disruption
  • Cost effective solution
Get Quote

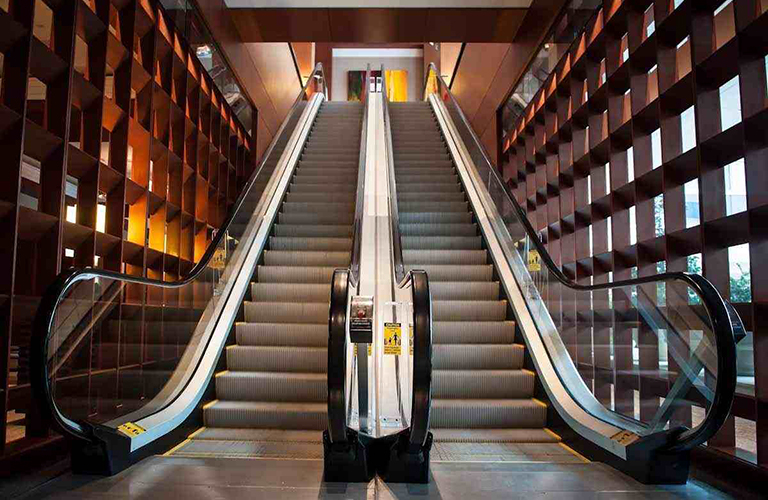

Escalators
Escalators allow for smooth movement up and down a large number of people simultaneously, without a waiting period or limits into the load, unlike elevators Relis full range of Escalators and Passenger Conveyors is suitable for installation in shopping centres, retail stores, hotels, sports/entertainment venues and heavy duty designs for public transport applications. Escalator Features:
  • Inclination 30 degree or 35 degree or 45 degrees
  • Step width (mm) 600/800/1000
  • Capacity (p/h) 4500/6750/9000 for respective step widths
  • Choice of glass or stainless steel balustrade design
Passenger Conveyor Features:
  • Inclination 10 degree, 11 degree or 12 degree, 0 degree - 6 degree
  • Pallet Width (mm) 800/1000, 1000/1200/1400
  • Capacity (p/h) 6750/9000, 9000/11250/13500
  • Standard features for Escalators and Passenger Conveyors
  • Full length brush guards
  • Stainless steel inner and outer decking
  • Stainless steel balustrade profile
  • All safety devices to EN115
  • Variable frequency drive incorporating automatic energy saving system
  • Extensive range of other optional features available
